Compliance Standards: GB 2611, GB/T 228, GB/T 7314, GB/T 232, JJG 139, etc. Product Application: It is used for mechanical property tests such as tension, compression and bending on various metallic m…

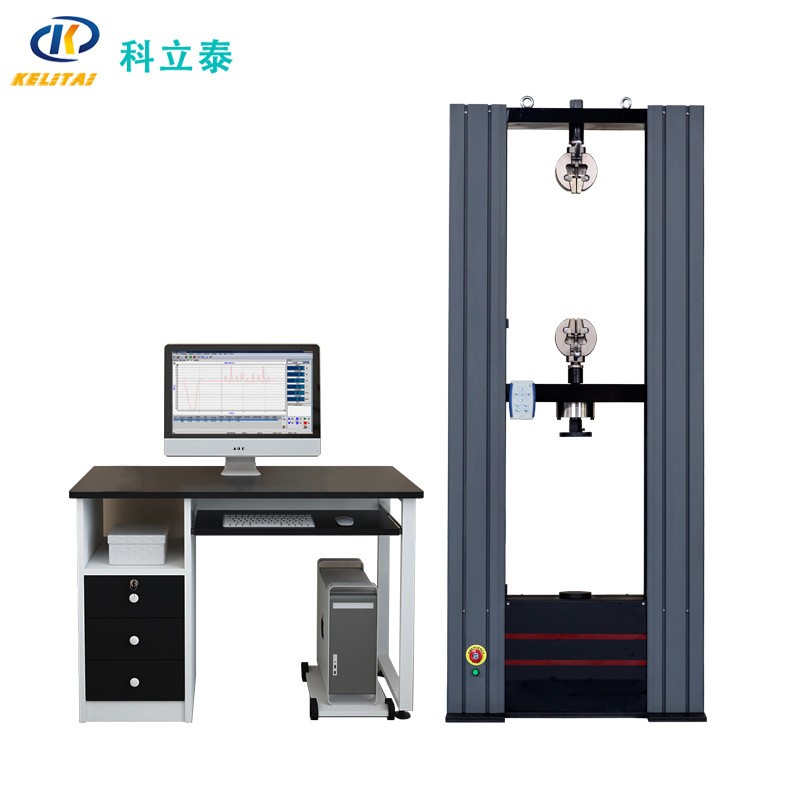

Product Application: It is used for mechanical property tests such as tension, compression and bending on various metallic materials, non‑metallic materials, product parts, components, structural parts and standard fasteners. When equipped with optional environmental accessories, this series of testing machines can also perform tensile, compression and bending tests under corresponding environmental conditions, such as high‑temperature tensile test, low‑temperature tensile test and compression test.
Item
Specification
Model
KT‑B900
Test Force
1000KN (Optional within 1000KN)
Test Force Indication Error
≤±1%
Test Force Measuring Range
4%～100%
Power System
Servo‑hydraulic system + brand‑name lead screw
Clamping Diameter Range for Round Specimens
Φ13～Φ60 mm
Clamping Thickness Range for Flat Specimens
0～40 mm
Clamping Width for Flat Specimens
110 mm
Adjustment Speed of Test Space
≈150 mm
Maximum Tensile Test Space
620 mm
Maximum Compression Test Space
550 mm
Motor Power
2.5 KW
Net Weight
3500 Kg
Overall Dimension of Main Unit
900×740×2400 mm
Additional Features
Stroke protection activates automatically when piston rises to upper limit position
Automatic machine protection when load exceeds rated value by 2%‑5%
