Product Introduction

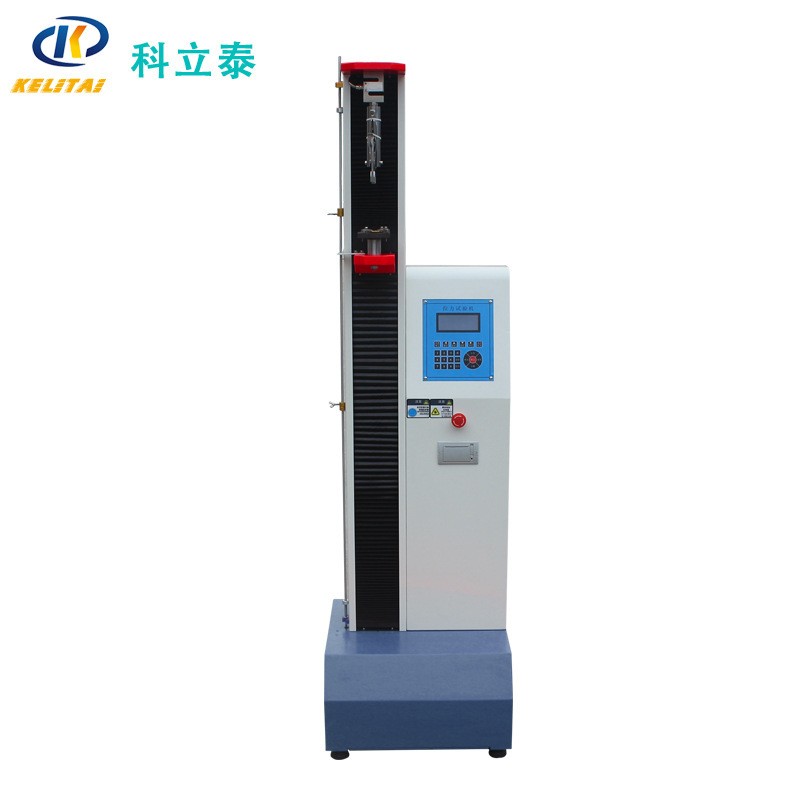

KT‑X5000 Digital Display Single‑arm Micro‑controlled Electronic Universal Testing Machine is a new‑generation microcomputer‑controlled electronic universal testing machine specially designed for universities and research institutes. The design of its main unit and accessories draws on advanced international technology. It features elegant appearance, convenient operation as well as stable and reliable performance. Equipped with high‑precision stepper motor and driver, it drives precision ball‑screw and guide rod for loading after deceleration. It can complete various mechanical performance tests such as tension, compression, bending and shear for specimens. It features wide and accurate loading speed and force‑measuring range, and delivers high precision & sensitivity for measurement and control of load, deformation and displacement. It is applicable for performance tests such as tension, peeling and tearing of plastic films, composite films, soft packaging materials, adhesives, adhesive tapes, self‑adhesive materials, rubber, paper and other products. It serves as ideal test equipment for scientific research institutes, commodity inspection & arbitration authorities, universities, industrial & mining enterprises, and technical supervision departments.
Main Technical Specifications
- Maximum Test Force: 5000N
- Tester Grade: Class 1
- Force Measuring Range: 2%‑100% FS
- Force Indication Accuracy: better than ±1% of indication value
- Force Resolution: 1/3000
- Displacement Measurement Resolution: higher than 0.01 mm
- Speed Adjustment Range: 0.1‑500 mm/min, stepless speed‑regulation
- Safety Protection Device: Mechanical limit protection & software overload protection
- Test Stroke: 700 mm (Customizable upon user’s requirement)
- Working Conditions: Ambient temperature: ‑40℃~35℃; relative humidity ≤80%
- Overall Dimension of Main Unit: 470×470×1220 mm
- Net Weight: Approx. 85 kg
- Power Supply: Single‑phase AC220V±10%, 50Hz; Power: 400W
